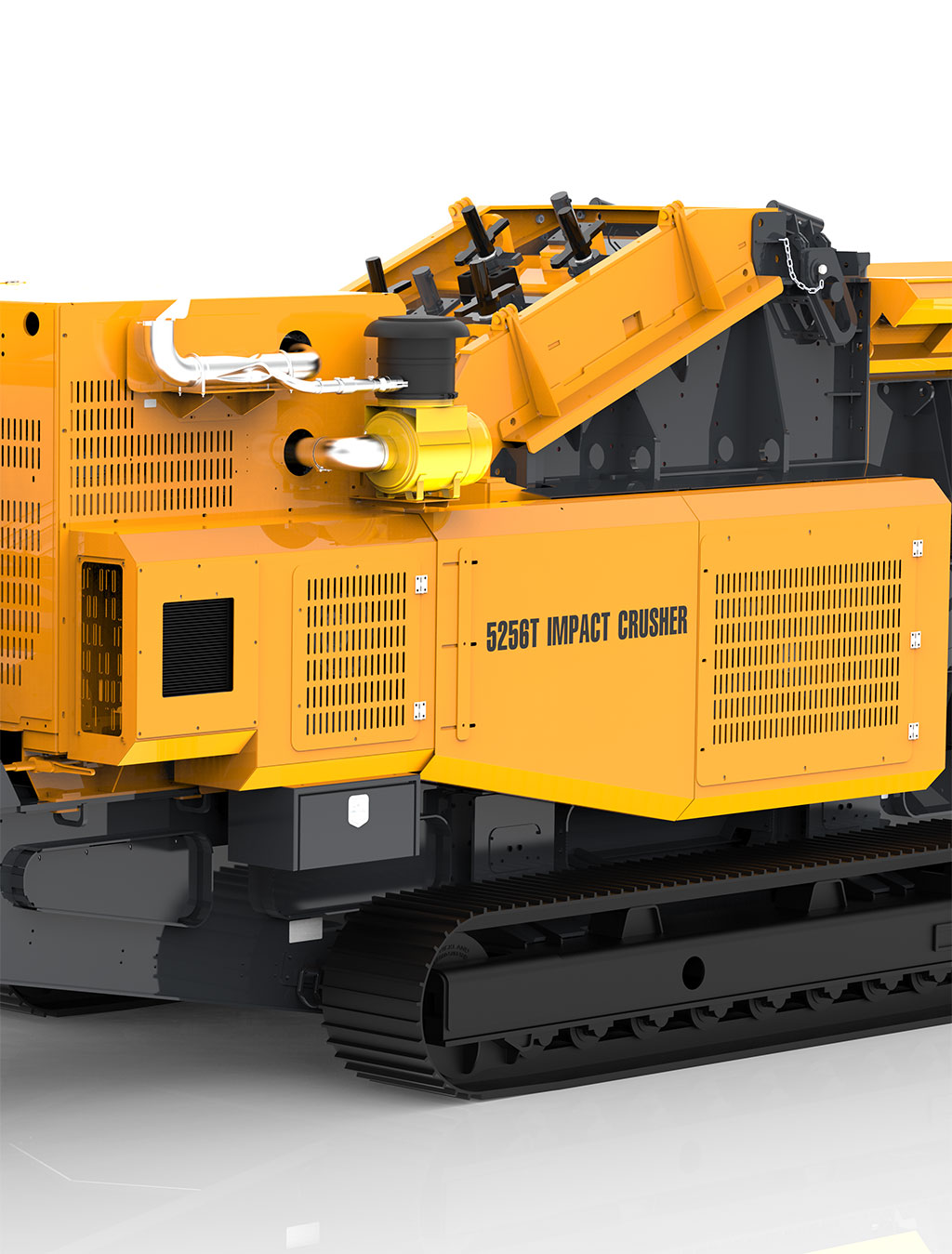

The 5256T Impact Crusher is a track-mounted crusher designed to crush quarry rock or recyclable materials such as concrete and asphalt. Features include standard heavy-duty tracks, a CAT® ACERT C13 475 HP (354kw) diesel engine – Tier IV Final. This mobile impact crusher is equipped with a 52″ x 56″ (1.3m x 1.4m) horizontal shaft impactor with a 56″ x 38″ (1.4m x .9m) feed inlet opening and fully remote controlled operation.
Our patented Remote Crusher Relief System is a key feature that allows for blockage clearance during operation. The wireless remote control triggers the lifting lid allowing over sized material to pass through the crusher without stoppage. This feature alone can save countless of hours of rock crushing during operation.
Click to Zoom in
Features Overview:
Click on the image below to view a specification “flipcard”
- Crusher
- 52″ x 56″ (1.3m x 1.4m) horizontal impact crusher
- 56″ x 38″ (1.4m x .9m) high feed inlet opening
- Engine & Controls
- CAT® C13 475 HP (354kw) diesel engine – Tier IV Final
- LCD control panel
- Wireless remote control operation
- Hopper / Feeder
- 52″ x 15′-0” (1.3m x 4.5m) vibratory grizzly feeder
- Conveyors
- 54″ Wide (1.4m) main belt
- 12′-7″ (3.7m-18cm) discharge height
- 24″ (.6m) fines side conveyor
- 7′-5″ (2.1m-12.7cm) discharge height
- 54″ Wide (1.4m) main belt
- Unique/Patented Features
- Remote Crusher Relief System (US Patent #7,229,041)
- Fully adjustable cross-belt magnet with stainless steel chutes
- Structure / Undercarriage
- USA-made Grade 80 steel construction
- Heavy-duty undercarriage
