CST Mobile Cone Crusher

The CST Cone Crusher is a large track-mounted, portable crusher plant designed for secondary crushing of hard rock into cubical sizes.

Mounting a heavy built “quarry duty” cone crusher on a wireless remote controlled track mounted plant is rare and the placement of a shaker screen to pre-screen the fines out prior to entering the crushing chamber is unique. This feature increases overall production and significantly reduces wear costs.

Click to Zoom in

Features Overview:

  • Crusher

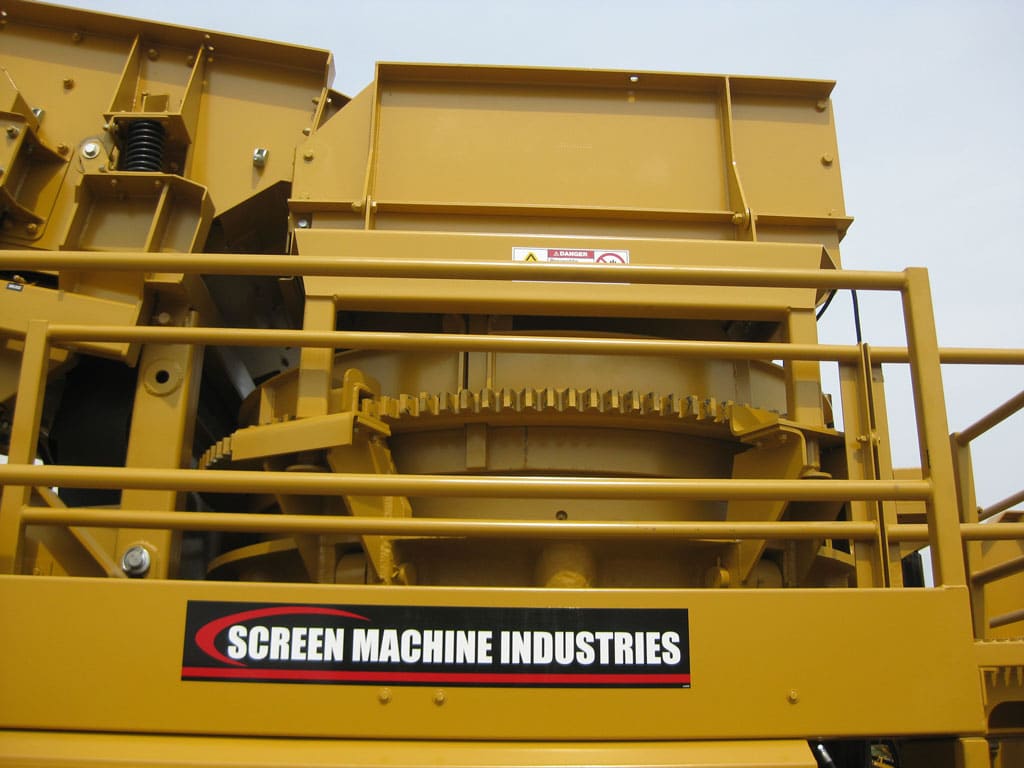

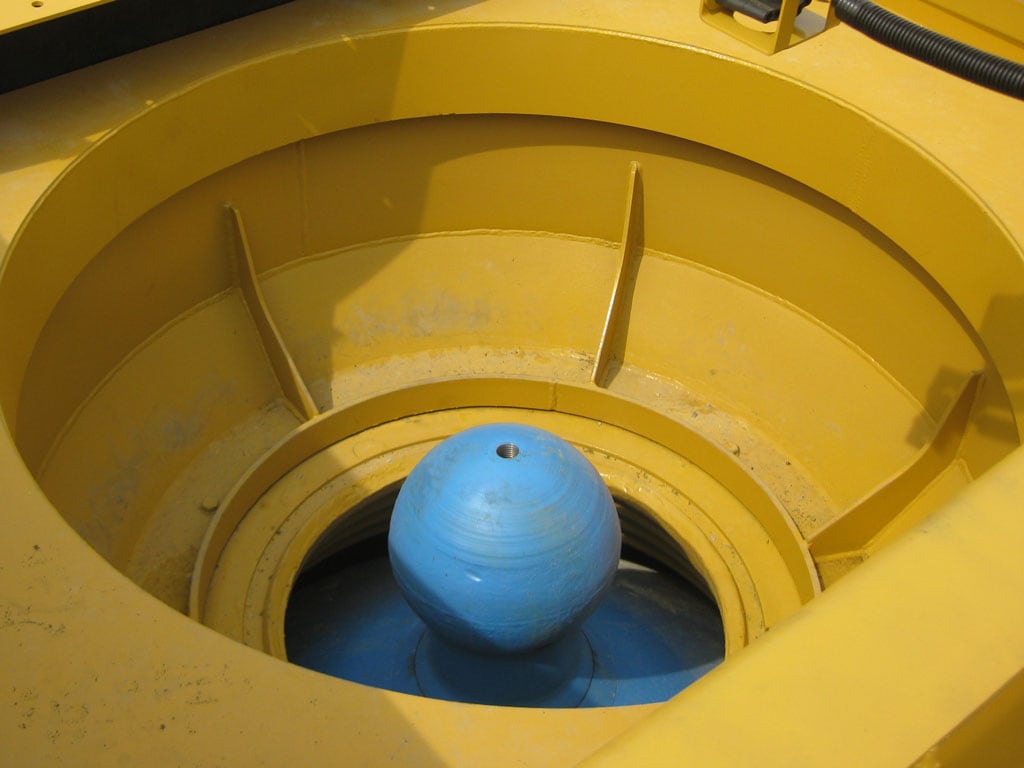

    • 51″ (1.3m) “quarry duty” standard head cone crusher
    • Hydraulic tramp relief and hydraulic adjustment
  • Screen

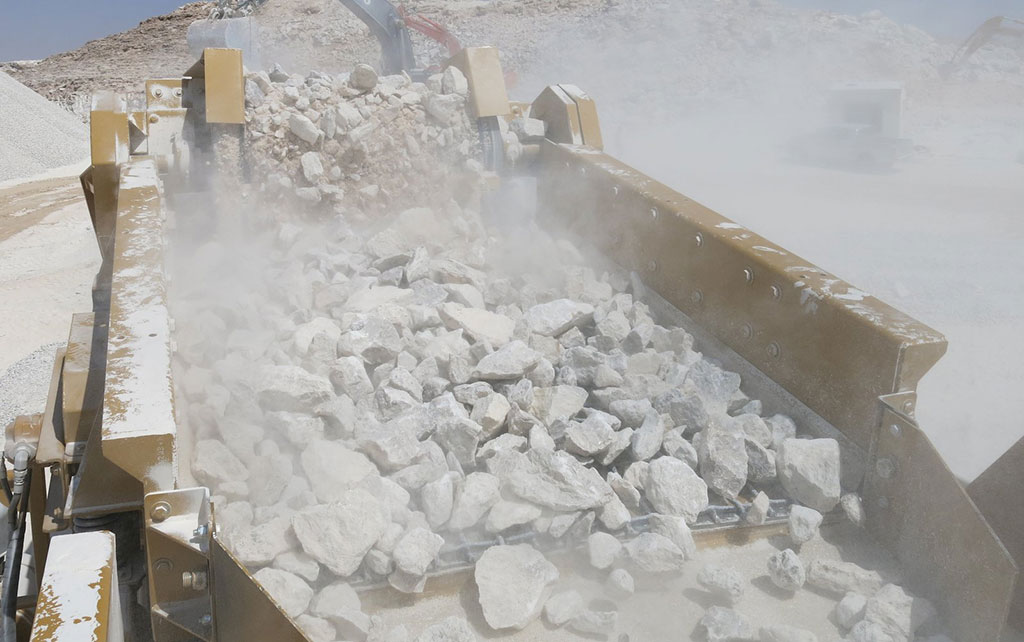

    • Single deck 5′ x 7′ (1.54m x 2.1m) screen to remove fines prior to crushing
  • Engine & Controls
    • Caterpillar® C9.3B 375 HP (280 kw) engine
    • Cattron® wireless remote control operation
  • Conveyors
    • 42″ (1.07m) main belt
      • 10′-10″ (3.3m) discharge height
  • Unique Features
    • Smooth Start® Technology – US Patent #6,669,026
    • Single deck fines screen
    • Tramp relief and hydraulic adjustment of crusher
  • Structure / Undercarriage
