The Spyder 516T Double Deck Screening Plant is a patented aggregate screening plant designed to separate rock, soils, sand & gravel and construction & demolition materials producing three different sizes of product simultaneously. This heavy-duty rock screen features standard equipment such as a CAT® C4.4 Tier IV 110 HP (82kw) diesel engine, heavy-duty tracks and remote control movement and operation. The Spyder 516T’s unique patented design allows feeding from three sides with a loader or excavator to accommodate any job site application.
Click to Zoom in
Features Overview:
Click on the image below to view a specification “flipcard”
- Screen
- 5′-0″ x 16′-0″ (1.5m x 4.8m) double deck two bearing screen
- 5′-0″ x 14′-0″ (1.5m x 4.3m) bottom deck
- Adjustable screen angle
- Engine / Controls
- CAT C4.4 110 HP (82kw) Tier IV diesel engine
- LED touch-screen control panel
- Wireless remote control operation
- Conveyors
- 48″ (1.2m) wide oversize conveyor with impact bed
- 9′-4″ (2.8m) discharge height
- 24″ (.6m) midsize conveyor
- 13′-0″ (3.9m) discharge height
- 36″ (.9m) fines conveyor
- 12′-6″ (3.8m) discharge height
- 48″ (1.2m) wide oversize conveyor with impact bed
- Hopper / Feeder
- 48″ (1.2m) wide impact bed belt feeder
- Optional apron feeder available
- Structure / Undercarriage
- Heavy-duty unibody frame chassis
- Heavy-duty tracked undercarriage
- Unique / Patented Features
- Patented Smooth Start® technology – U.S. #6,669,026

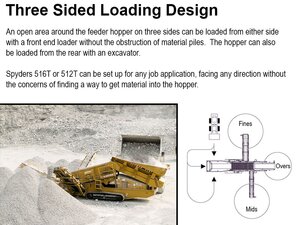

- Patented Three Sided Loading design – U.S. #6,698,594
- Independent hydraulics
